Facilities
Trusted Steel,
Proven Performance
Proven Performance
Wellgrow Line SPECs
Major Equipment Specifications（Thickness / Width / Length）
SLITTER LINE Slitter Lines
LS05
Output : Coil (C)
- Thickness0.27 – 3.20 mm
- Width25 – 1,380 mm
- Length—
LS06
Output : Coil (C)
- Thickness0.30 – 2.30 mm
- Width40 – 1,300 mm
- Length—
LS08 (Mini)
Output : Coil (C)
- Thickness0.16 – 2.00 mm
- Width15 – 650 mm
- Length—
LEVELLER LINE Leveller Shear Lines
SH04 (Mini)
Output : Sheet
- Thickness0.27 – 1.60 mm
- Width45 – 800 mm
- Length150 – 2,200 mm
SH05 (Mini)
Output : Sheet
- Thickness0.30 – 2.30 mm
- Width90 – 855 mm
- Length150 – 2,140 mm
SH06
Output : Sheet
- Thickness0.30 – 3.20 mm
- Width400 – 1,550 mm
- Length400 – 3,200 mm
Blanking Line SPECs
Blanking Liness (BL-01, BL-02, BL-04）| Topic | Description | BL-01 Made in Japan 1990 |
BL-02 Made in Japan 2005 |
BL-04 Coming Soon |
|---|---|---|---|---|
| Coil Feeder | Material of sheet | HR, CR, GA, GI, High tensile | HR, CR, GA, GI, High tensile | — |
| Thickness (High tensile) | 0.55–1.2 (2.3) mm | 0.55–2.0 (2.3) mm | — | |
| Width of sheet (High tensile) | 300–1350 (600) mm | 300–1550 (1300) mm | — | |
| Weight of coil | Max 15t | Max 15t | — | |
| Coil outside diameter | 800–2000 mm | 800–2000 mm | — | |
| Coil washing equipment | Edge oil filter capacity | 65 lit./min | 100 lit./min (max=120) | — |
| Feeding length | 740–1400 mm | 250–4000 mm | — | |
| General specifications of press | Capacity | 600 tons | 600 tons | — |
| Die height | 1000 mm | 1000 mm | — | |
| Stroke | 250 mm | 250 mm | — | |
| Number of strokes | 18–20 spm | 15–18 spm | — | |
| Sheet washing unit | Edge oil filter capacity | 65 lit./min | 100 lit./min (max=120) | — |
| Width of sheet | 300–1350 mm | 300–1550 mm | — | |
| Specifications of Main piller | Max load | 30,000 kg | 30,000 kg | — |
Sriracha Line SPECs
SLITTER LINE
LS04 (Mini)
Output : Coil (C)
- Thickness0.14 – 2.30 mm
- Width15 – 500 mm
- Length—
LS10
Output : Coil (C)
- Thickness0.29 – 4.50 mm
- Width24 – 1,350 mm
- Length—
LS11
Output : Coil (C)
- Thickness0.30 – 2.30 mm
- Width600 – 1,300 mm
- Length—
LEVELLER LINE
SH10 (Mini)
Output : Sheet
- Thickness0.40 – 3.20 mm
- Width100 – 920 mm
- Length200 – 2,700 mm
SH11 (Mini)
Output : Sheet
- Thickness0.30 – 1.60 mm
- Width40 – 500 mm
- Length100 – 1,300 mm
Sriracha Blanking Line SPEC
BL-03（Sriracha Factory）
| Topic | Description | BL-03 |
|---|---|---|
| Coil Feeder | Material of sheet | SPCC / SPHC, High tensile |
| Thickness of sheet | 0.5 – 2.3 mm | |
| Thickness (High tensile) | 0.5 – 2.3 mm (2.0) | |
| Width of sheet | 300 – 1,850 mm ±0.3 | |
| Width of sheet (High tensile) | 300 – 1,350 mm (1,000) | |
| Weight of coil | Max 20 t | |
| Coil outside diameter | 700 – 2,000 mm | |
| Coil inside diameter | 508 – 610 mm | |
| Feeding length | 250 – 4,000 mm | |
| Feeding strokes per minute | 10 – 80 spm | |
| Pass line height above bolster | 600 mm | |
| Coil washing equipment | Edge oil filter capacity | 100 L/min (max=120) |
| General specifications of press | Capacity | 600 tons |
| Slide stroke | 250 mm | |
| Side stroke | 250 mm | |
| Slide adjustment stroke | 500 mm | |
| Die height | 1,000 mm | |
| No. of strokes | 15 – 18 spm | |
| Slide area (L-R × F-B) | 4,500 × 2,500 mm | |
| Bolster area (L-R × F-B) | 4,500 × 2,500 mm | |
| T-slot pitch | 320 mm | |
| Height from floor level to top of bolster | 770 mm | |
| Sheet washing unit | — | — |
| Main piler | Width of sheet | 300 – 1,850 mm |
| Length of sheet (No.1) | 250 – 4,000 mm | |
| Length of sheet (No.2) | 250 – 4,000 mm | |
| Weight of sheet | Max 40 kg | |
| Piled stack height | Max 850 mm | |
| Side piler | Width of sheet | 300 – 1,850 mm |
| Length of sheet | 100 – 1,500 mm | |
| Piled stack weight | Max 5,000 kg / 1 piler |

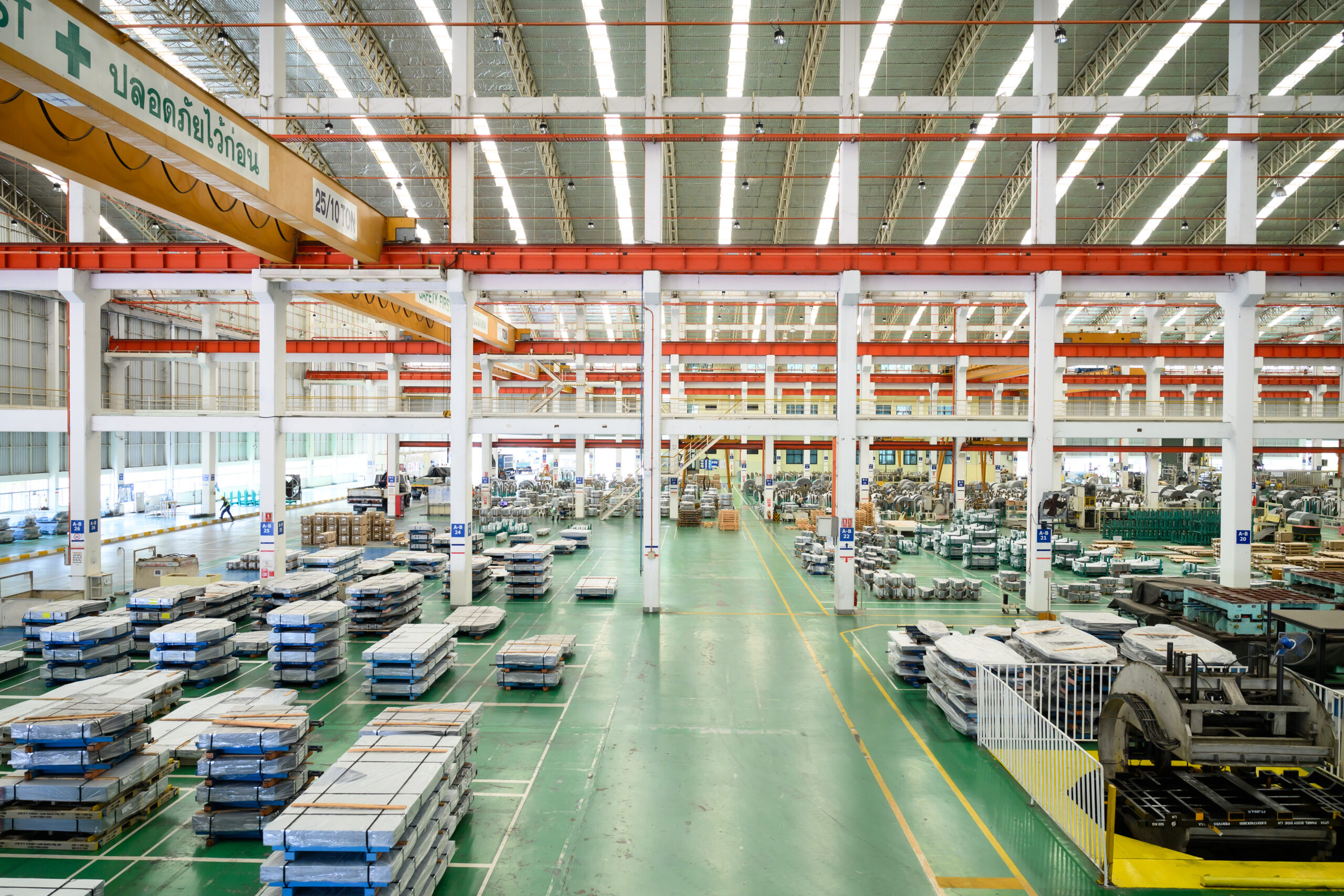

Our facilities
are equipped with advanced machinery, including:

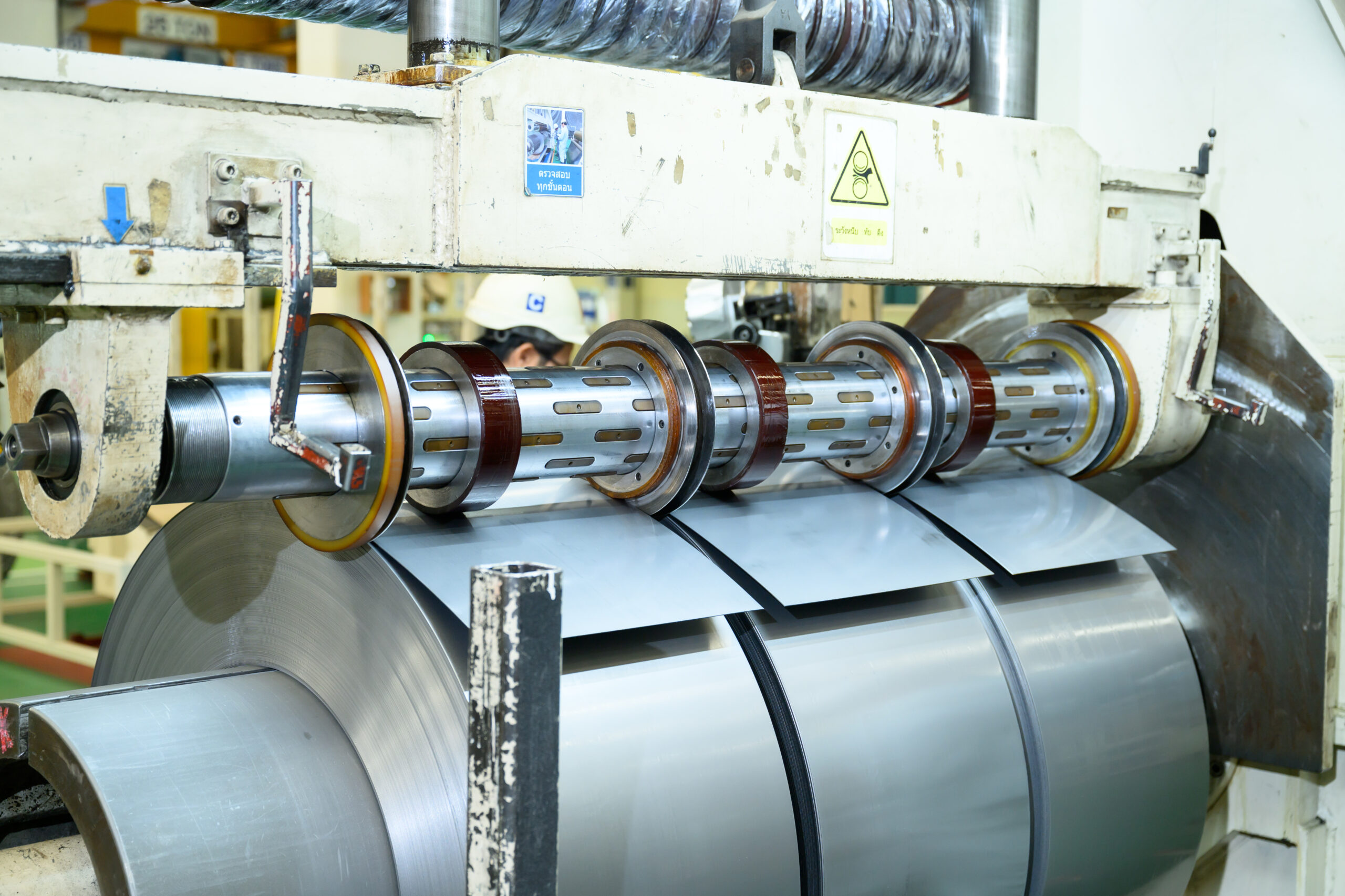

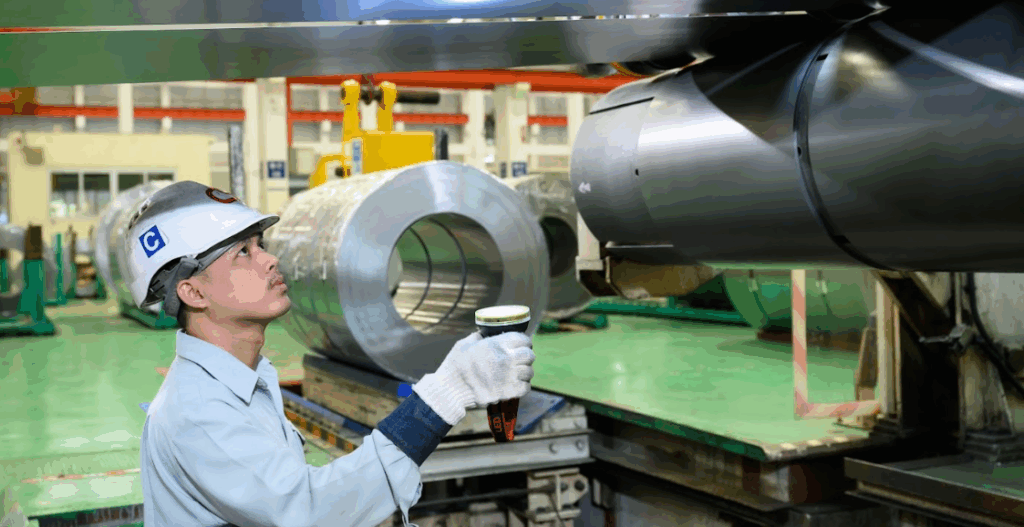

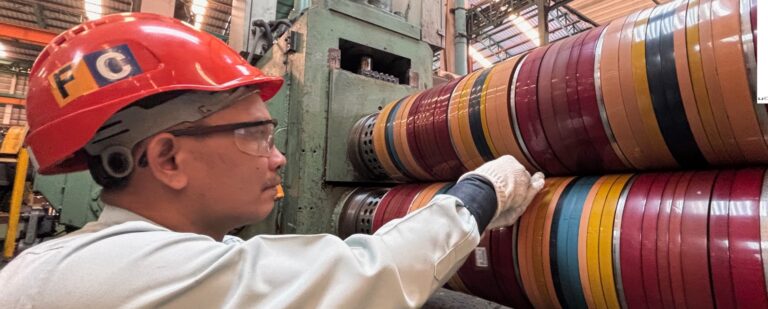

Slitter Lines
Slitter lines are used to cut wide steel coils into narrower strips with precise width and edge quality, supporting industries like automotive, appliances, and construction with efficient coil processing.

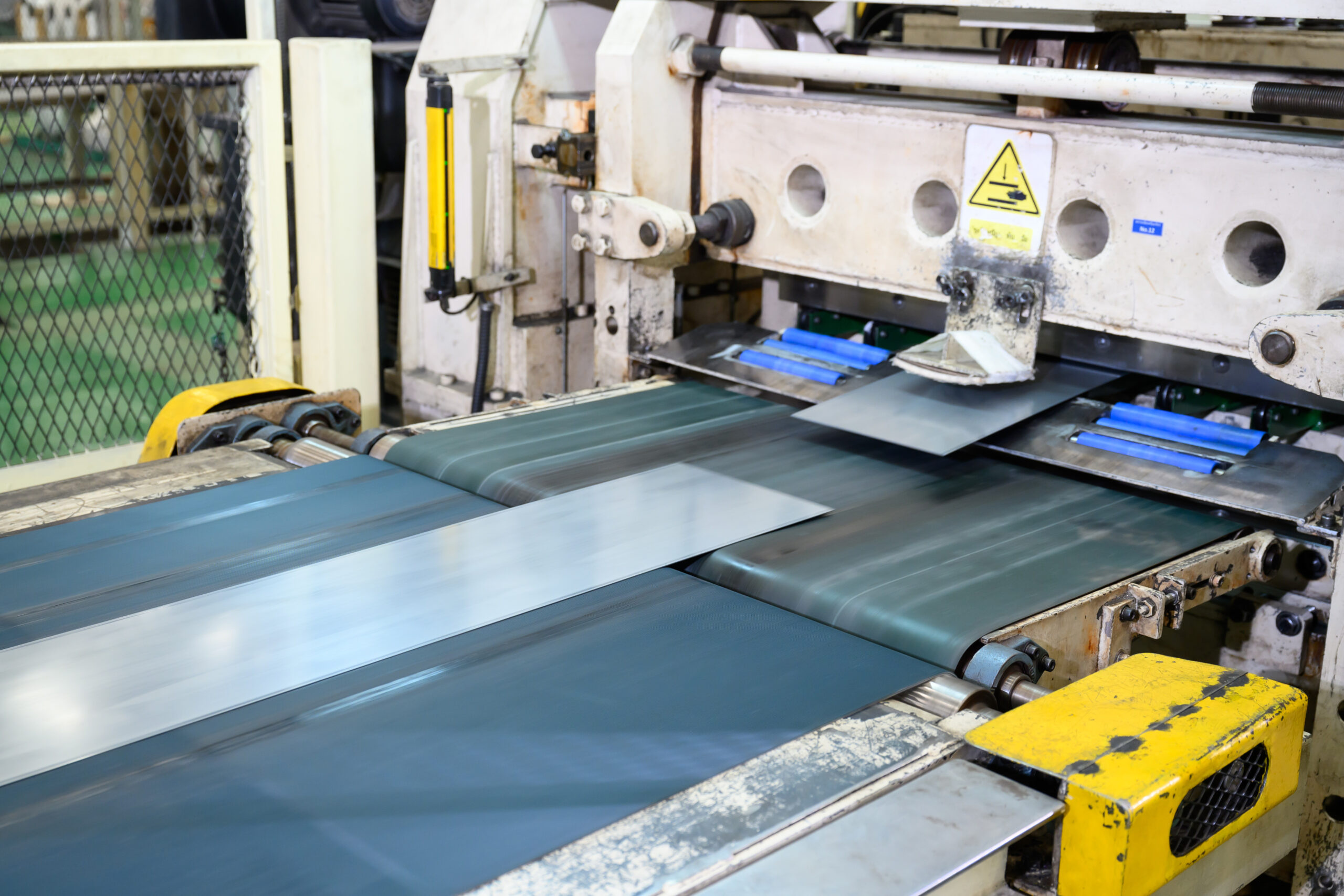

Shear Lines
A shear line is an industrial system designed to process steel coils by flattening and cutting them into sheets of specified lengths. This system enhances the material's flatness and prepares it for various manufacturing applications.
Blanking Lines
A blanking line is a critical production system designed to cut large steel coils into specific, flat sheet metal blanks that serve as the foundational pieces for various vehicle components.

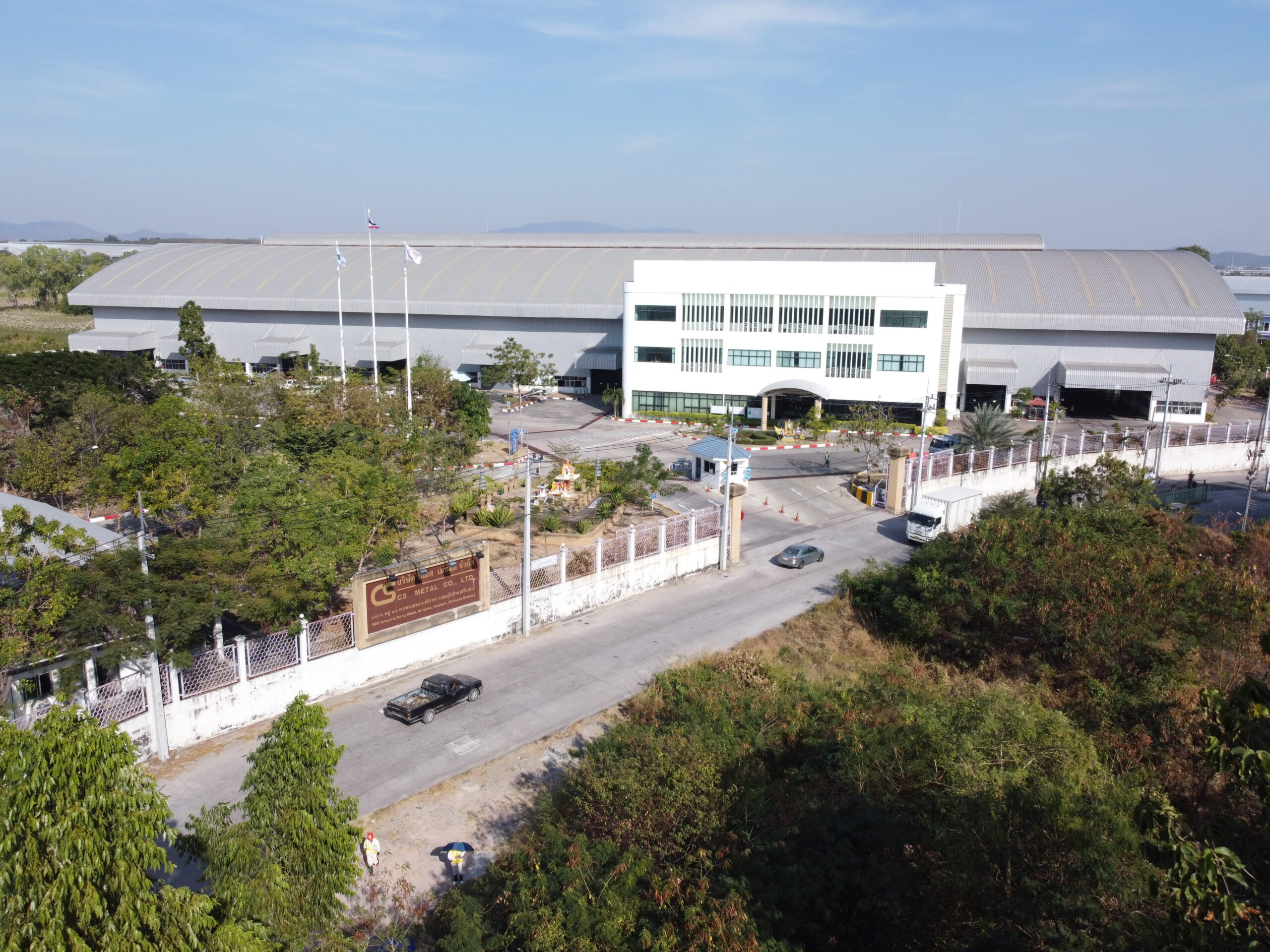

Wellgrow Factory (Head Office)
Large Slitter: 2
Mini Slitter: 1
Mini Leveler Shear: 3
Press Shear: 1
Re-Shear: 4
Blanking: 2
Navanakorn Factory
Large Slitter: 2
Mini Slitter: 1
Mini Leveler Shear: 3
Press Shear: 1
Re-Shear: 1
Blanking: 2
Sriracha Factory
Large Slitter: 1
Mini Slitter: 1
Large Leveler Shear: 1
Press Shear: 1
Re-Shear: 1
Blanking: 1
Our Standard
At CS Metal; safety, quality, and sustainability are our top priorities. We are proud to hold the following certifications:
- ISO 9001:2015/IATF 16949:2016
Meeting the stringent quality requirements of the automotive industry and delivering solutions that exceed expectations. - ISO 14001:2015
Environmental Management System:
Reflecting our commitment to sustainable operations and minimizing environmental impact.
ISO 9001
Quality Management
IATF 16949
Automotive Quality Management
ISO 14001
Environmental Management
