机器
值得信赖的钢材，
经过验证的性能
经过验证的性能
Wellgrow 生产线规格
Major Equipment Specifications（Thickness / Width / Length）
SLITTER LINE Slitter Lines
LS05
Output : Coil (C)
- Thickness0.27 – 3.20 mm
- Width25 – 1,380 mm
- Length—
LS06
Output : Coil (C)
- Thickness0.30 – 2.30 mm
- Width40 – 1,300 mm
- Length—
LS08 (Mini)
Output : Coil (C)
- Thickness0.16 – 2.00 mm
- Width15 – 650 mm
- Length—
LEVELLER LINE Leveller Shear Lines
SH04 (Mini)
Output : Sheet
- Thickness0.27 – 1.60 mm
- Width45 – 800 mm
- Length150 – 2,200 mm
SH05 (Mini)
Output : Sheet
- Thickness0.30 – 2.30 mm
- Width90 – 855 mm
- Length150 – 2,140 mm
SH06
Output : Sheet
- Thickness0.30 – 3.20 mm
- Width400 – 1,550 mm
- Length400 – 3,200 mm
Blanking 生产线规格
Blanking Liness (BL-01, BL-02, BL-04）| Topic | Description | BL-01 Made in Japan 1990 |
BL-02 Made in Japan 2005 |
BL-04 Coming Soon |
|---|---|---|---|---|
| Coil Feeder | Material of sheet | HR, CR, GA, GI, High tensile | HR, CR, GA, GI, High tensile | — |
| Thickness (High tensile) | 0.55–1.2 (2.3) mm | 0.55–2.0 (2.3) mm | — | |
| Width of sheet (High tensile) | 300–1350 (600) mm | 300–1550 (1300) mm | — | |
| Weight of coil | Max 15t | Max 15t | — | |
| Coil outside diameter | 800–2000 mm | 800–2000 mm | — | |
| Coil washing equipment | Edge oil filter capacity | 65 lit./min | 100 lit./min (max=120) | — |
| Feeding length | 740–1400 mm | 250–4000 mm | — | |
| General specifications of press | Capacity | 600 tons | 600 tons | — |
| Die height | 1000 mm | 1000 mm | — | |
| Stroke | 250 mm | 250 mm | — | |
| Number of strokes | 18–20 spm | 15–18 spm | — | |
| Sheet washing unit | Edge oil filter capacity | 65 lit./min | 100 lit./min (max=120) | — |
| Width of sheet | 300–1350 mm | 300–1550 mm | — | |
| Specifications of Main piller | Max load | 30,000 kg | 30,000 kg | — |
Sriracha 生产线规格
SLITTER LINE
LS04 (Mini)
Output : Coil (C)
- Thickness0.14 – 2.30 mm
- Width15 – 500 mm
- Length—
LS10
Output : Coil (C)
- Thickness0.29 – 4.50 mm
- Width24 – 1,350 mm
- Length—
LS11
Output : Coil (C)
- Thickness0.30 – 2.30 mm
- Width600 – 1,300 mm
- Length—
LEVELLER LINE
SH10 (Mini)
Output : Sheet
- Thickness0.40 – 3.20 mm
- Width100 – 920 mm
- Length200 – 2,700 mm
SH11 (Mini)
Output : Sheet
- Thickness0.30 – 1.60 mm
- Width40 – 500 mm
- Length100 – 1,300 mm
Sriracha Blanking 生产线规格
BL-03（Sriracha Factory）
| Topic | Description | BL-03 |
|---|---|---|
| Coil Feeder | Material of sheet | SPCC / SPHC, High tensile |
| Thickness of sheet | 0.5 – 2.3 mm | |
| Thickness (High tensile) | 0.5 – 2.3 mm (2.0) | |
| Width of sheet | 300 – 1,850 mm ±0.3 | |
| Width of sheet (High tensile) | 300 – 1,350 mm (1,000) | |
| Weight of coil | Max 20 t | |
| Coil outside diameter | 700 – 2,000 mm | |
| Coil inside diameter | 508 – 610 mm | |
| Feeding length | 250 – 4,000 mm | |
| Feeding strokes per minute | 10 – 80 spm | |
| Pass line height above bolster | 600 mm | |
| Coil washing equipment | Edge oil filter capacity | 100 L/min (max=120) |
| General specifications of press | Capacity | 600 tons |
| Slide stroke | 250 mm | |
| Side stroke | 250 mm | |
| Slide adjustment stroke | 500 mm | |
| Die height | 1,000 mm | |
| No. of strokes | 15 – 18 spm | |
| Slide area (L-R × F-B) | 4,500 × 2,500 mm | |
| Bolster area (L-R × F-B) | 4,500 × 2,500 mm | |
| T-slot pitch | 320 mm | |
| Height from floor level to top of bolster | 770 mm | |
| Sheet washing unit | — | — |
| Main piler | Width of sheet | 300 – 1,850 mm |
| Length of sheet (No.1) | 250 – 4,000 mm | |
| Length of sheet (No.2) | 250 – 4,000 mm | |
| Weight of sheet | Max 40 kg | |
| Piled stack height | Max 850 mm | |
| Side piler | Width of sheet | 300 – 1,850 mm |
| Length of sheet | 100 – 1,500 mm | |
| Piled stack weight | Max 5,000 kg / 1 piler |
我们的工厂
配备了先进的机械设备，包括：

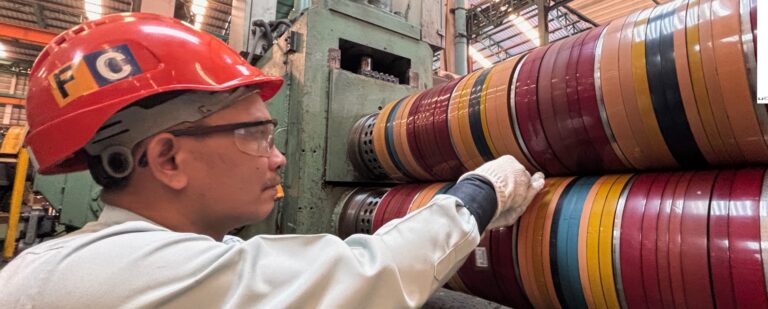

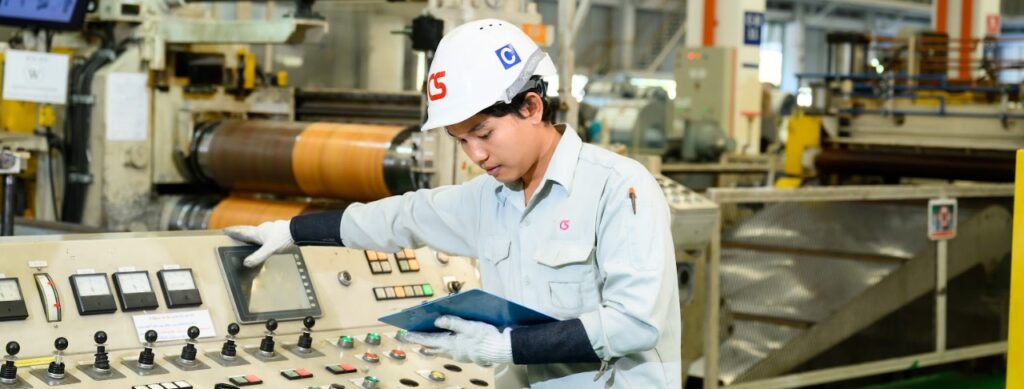

分条生产线
分条生产线是一种将钢卷纵向切割成所需宽度的工业系统。
该系统可灵活地切割不同规格的钢带，以满足汽车、家电和建筑等行业的多样化需求。

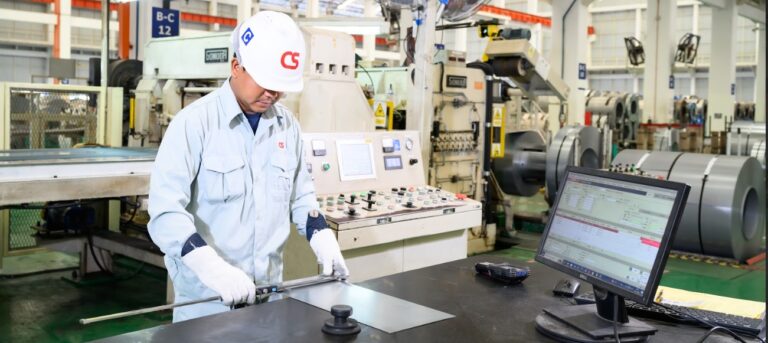

剪切生产线
剪切生产线（整平线）用于将钢卷经整平处理后，横向剪切成所需长度的钢板。
该系统可有效消除卷曲、波浪等缺陷，并提供表面平整的板材。
落料生产线
落料生产线是一种关键的生产系统，用于将钢卷整平并冲裁成特定形状或尺寸的金属板料。
这些板材通常作为汽车零部件（如车门、引擎盖等）的基础原材料。
我们的标准
在希尔思金属公司，安全、质量和可持续发展是我们的首要任务。 我们很荣幸拥有以下认证：
- ISO 9001:2015/IATF 16949:2016
满足汽车行业严格的质量要求，提供超出预期的解决方案。 - ISO 14001:2015 环境管理体系：
反映了我们对可持续运营和最大限度减少环境影响的承诺。
ISO 9001
质量管理
IATF 16949
汽车质量管理
ISO 14001
环境管理
