設備
Wellgrow Line Specs
主要設備の能力一覧（Thickness / Width / Length）

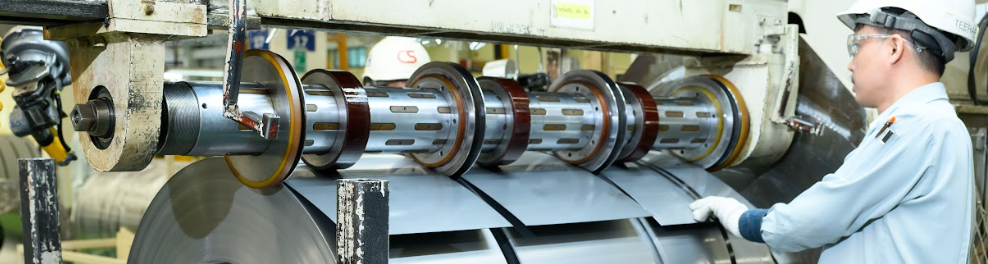

SLITTER LINE スリッターライン
LS05
Output : Coil (C)
- Thickness0.27 – 3.20 mm
- Width25 – 1,380 mm
- Length—
LS06
Output : Coil (C)
- Thickness0.30 – 2.30 mm
- Width40 – 1,300 mm
- Length—
LS08 (Mini)
Output : Coil (C)
- Thickness0.16 – 2.00 mm
- Width15 – 650 mm
- Length—
LEVELLER LINE レベラーライン
SH04 (Mini)
Output : Sheet
- Thickness0.27 – 1.60 mm
- Width45 – 800 mm
- Length150 – 2,200 mm
SH05 (Mini)
Output : Sheet
- Thickness0.30 – 2.30 mm
- Width90 – 855 mm
- Length150 – 2,140 mm
SH06
Output : Sheet
- Thickness0.30 – 3.20 mm
- Width400 – 1,550 mm
- Length400 – 3,200 mm

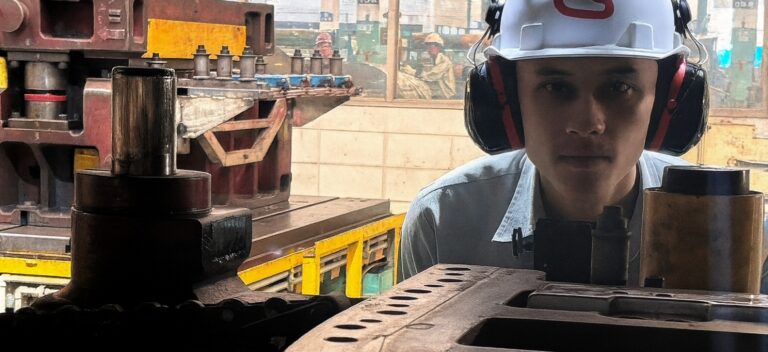

Blanking Line Specs
ブランキングライン（BL-01, BL-02, BL-04予定）
| Topic | Description | BL-01 Made in Japan 1990 |
BL-02 Made in Japan 2005 |
BL-04 Coming Soon |
|---|---|---|---|---|
| Coil Feeder | Material of sheet | HR, CR, GA, GI, High tensile | HR, CR, GA, GI, High tensile | — |
| Thickness (High tensile) | 0.55–1.2 (2.3) mm | 0.55–2.0 (2.3) mm | — | |
| Width of sheet (High tensile) | 300–1350 (600) mm | 300–1550 (1300) mm | — | |
| Weight of coil | Max 15t | Max 15t | — | |
| Coil outside diameter | 800–2000 mm | 800–2000 mm | — | |
| Coil washing equipment | Edge oil filter capacity | 65 lit./min | 100 lit./min (max=120) | — |
| Feeding length | 740–1400 mm | 250–4000 mm | — | |
| General specifications of press | Capacity | 600 tons | 600 tons | — |
| Die height | 1000 mm | 1000 mm | — | |
| Stroke | 250 mm | 250 mm | — | |
| Number of strokes | 18–20 spm | 15–18 spm | — | |
| Sheet washing unit | Edge oil filter capacity | 65 lit./min | 100 lit./min (max=120) | — |
| Width of sheet | 300–1350 mm | 300–1550 mm | — | |
| Specifications of Main piller | Max load | 30,000 kg | 30,000 kg | — |
Sriracha Line Specs
スリッター／レベラー
SLITTER LINE スリッターライン
LS04 (Mini)
Output : Coil (C)
- Thickness0.14 – 2.30 mm
- Width15 – 500 mm
- Length—
LS10
Output : Coil (C)
- Thickness0.29 – 4.50 mm
- Width24 – 1,350 mm
- Length—
LS11
Output : Coil (C)
- Thickness0.30 – 2.30 mm
- Width600 – 1,300 mm
- Length—
LEVELLER LINE レベラーライン
SH10 (Mini)
Output : Sheet
- Thickness0.40 – 3.20 mm
- Width100 – 920 mm
- Length200 – 2,700 mm
SH11 (Mini)
Output : Sheet
- Thickness0.30 – 1.60 mm
- Width40 – 500 mm
- Length100 – 1,300 mm
Sriracha Blanking Line Spec
BL-03（Sriracha Factory）
| Topic | Description | BL-03 |
|---|---|---|
| Coil Feeder | Material of sheet | SPCC / SPHC, High tensile |
| Thickness of sheet | 0.5 – 2.3 mm | |
| Thickness (High tensile) | 0.5 – 2.3 mm (2.0) | |
| Width of sheet | 300 – 1,850 mm ±0.3 | |
| Width of sheet (High tensile) | 300 – 1,350 mm (1,000) | |
| Weight of coil | Max 20 t | |
| Coil outside diameter | 700 – 2,000 mm | |
| Coil inside diameter | 508 – 610 mm | |
| Feeding length | 250 – 4,000 mm | |
| Feeding strokes per minute | 10 – 80 spm | |
| Pass line height above bolster | 600 mm | |
| Coil washing equipment | Edge oil filter capacity | 100 L/min (max=120) |
| General specifications of press | Capacity | 600 tons |
| Slide stroke | 250 mm | |
| Side stroke | 250 mm | |
| Slide adjustment stroke | 500 mm | |
| Die height | 1,000 mm | |
| No. of strokes | 15 – 18 spm | |
| Slide area (L-R × F-B) | 4,500 × 2,500 mm | |
| Bolster area (L-R × F-B) | 4,500 × 2,500 mm | |
| T-slot pitch | 320 mm | |
| Height from floor level to top of bolster | 770 mm | |
| Sheet washing unit | — | — |
| Main piler | Width of sheet | 300 – 1,850 mm |
| Length of sheet (No.1) | 250 – 4,000 mm | |
| Length of sheet (No.2) | 250 – 4,000 mm | |
| Weight of sheet | Max 40 kg | |
| Piled stack height | Max 850 mm | |
| Side piler | Width of sheet | 300 – 1,850 mm |
| Length of sheet | 100 – 1,500 mm | |
| Piled stack weight | Max 5,000 kg / 1 piler |
スタンダード
CSメタルでは、安全、品質、持続可能性が最優先事項です。 私たちは以下の認定を取得しています：
- ISO 9001:2015/IATF 16949:2016
自動車業界の厳しい品質要件を満たし、期待を上回るソリューションを提供。 - ISO 14001:2015 環境マネジメントシステム：
持続可能な事業運営と環境への影響の最小化へのコミットメントを反映。
ISO 9001
品質管理
IATF 16949
自動車品質管理
ISO 14001
環境マネジメント
